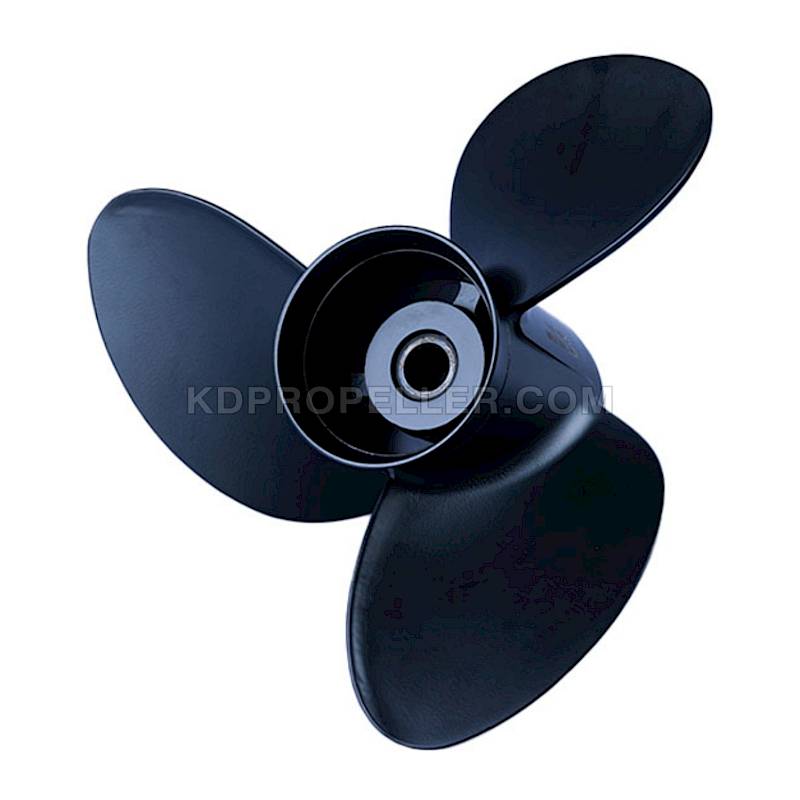

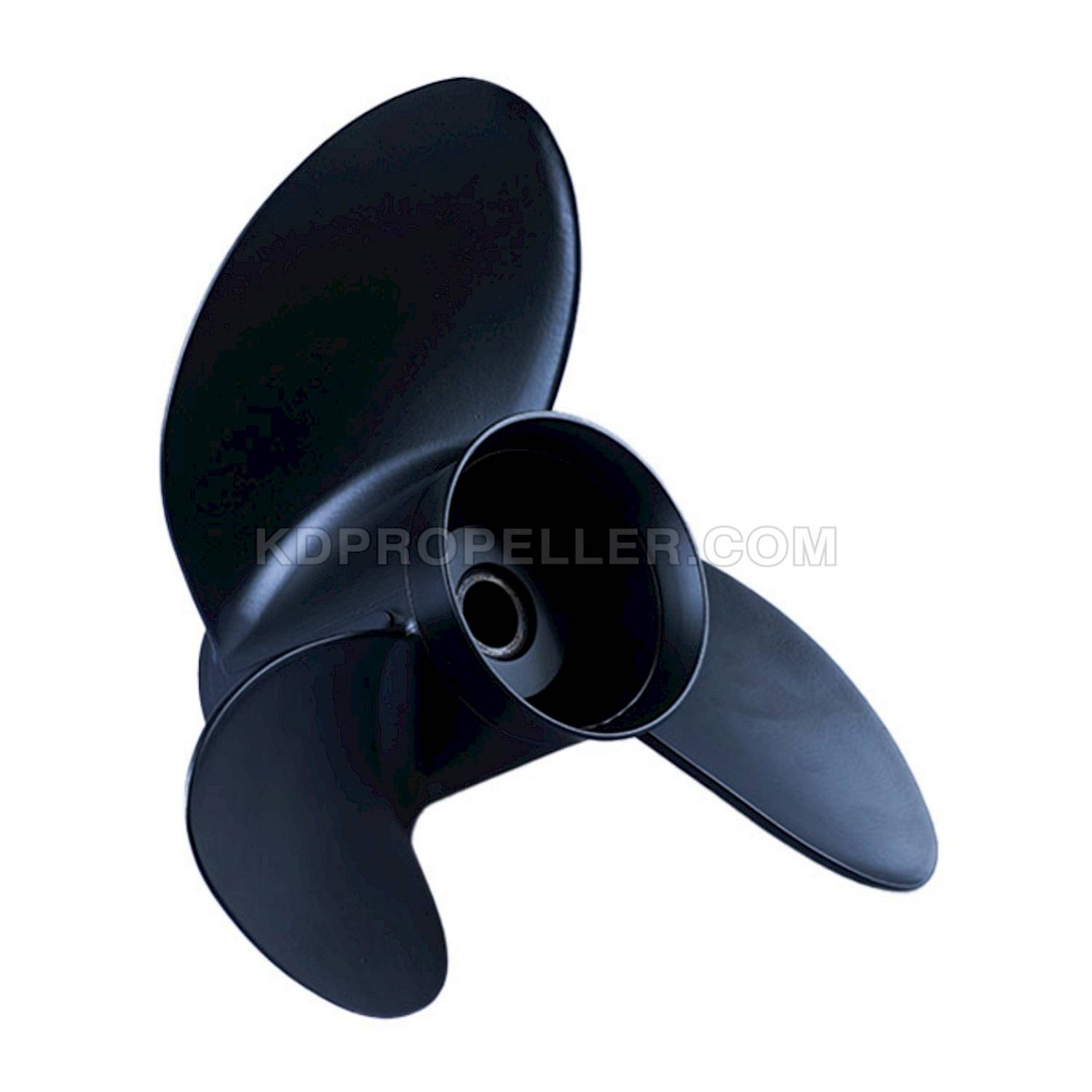

KDP 7X High-Strength Alloy 3-Blade Tohatsu Outboard BIG DIAMETER Propeller LH - E+ Class
Part #: 3512-158-130
Hub Type: Pressed-in
KDP Model: 7x Series
Class: E+
# of Blades: 3
Rotation: Left
Dimensions: E+ 15-3/4 x 13
Horsepower: 60 - 130 hp, 130 - 300 hp
Engines: Tohatsu
KDP 7X SERIES HIGH-STRENGTH ALLOY TOHATSU OUTBOARD "BIG DIAMETER" PROPELLER (E+ CLASS) - Pressed in Rubber Hub
Note: KDP Tohatsu Class E+ is the same as Honda Class E+
SKU #3512-158-130
REPLACES PROPELLER OEM P/N(S):
- N/C
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #3512-158-130
Big Diameter Propeller: YES (Big Diameter Propeller Recommended for High-Gear Ratios)
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: E+ (4-3/4" Gearcase)
Horsepower Range: 115 - 250hp
Propeller Diameter: 15-3/4"
Pitch: 13"
Number of Blades: 3
Rotation: LH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 15
Outboard Engine(s): TOHATSU, HONDA
TOHATSU COMPATIBLE ENGINE MODELS (4-3/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| BFT115HP (4 Stroke) | 2014 to Newer |
| BFT150HP (4 Stroke) | 2014 to Newer |
| BFT200HP (4 Stroke) | 2014 to Newer |
| BFT225HP (4 Stroke) | 2014 to Newer |
| BFT250HP (4 Stroke) | 2014 to Newer |
HONDA COMPATIBLE ENGINE MODELS (4-3/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| BF115HP (4 Stroke) | 2011 to Newer |
| BF135HP (4 Stroke) | 2004 to Newer |
| BF150HP (4 Stroke) | 2004 to Newer |
| BF200HP (4 Stroke) | 2002 to Newer |
| BF225HP (4 Stroke) | 2002 to Newer |
| BF250HP (4 Stroke) | 2012 to Newer |
