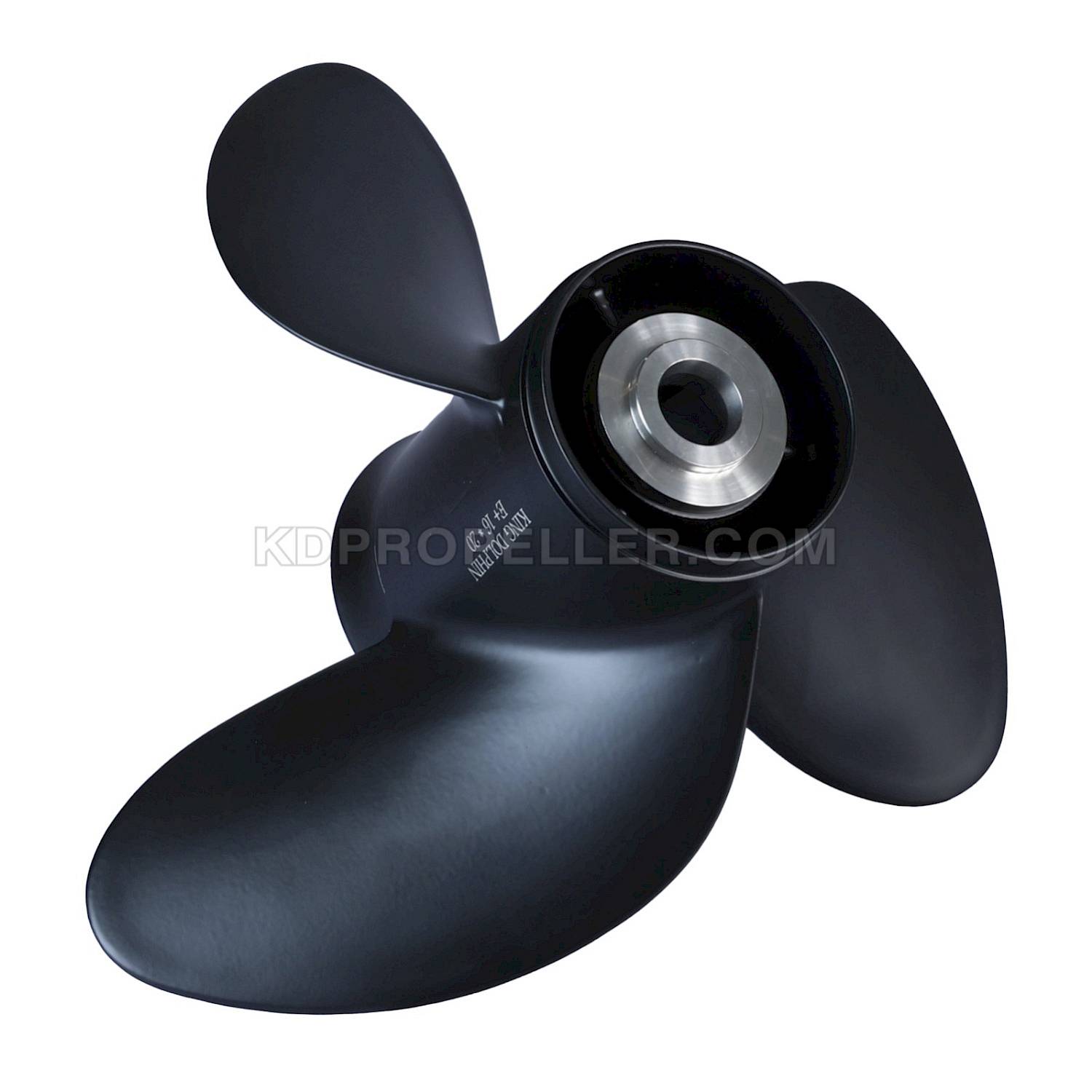

KDP 7X High-Strength Alloy 3-Blade Suzuki Outboard BIG DIAMETER Propeller LH - E+ Class (SOLAS 4512-158-15)
Part #: 2512-160-150
Hub Type: Pressed-in
KDP Model: 7x Series
Class: E+
# of Blades: 3
Rotation: Left
Dimensions: E+ 16 x 15
Horsepower: 130 - 300 hp
Engines: Suzuki
KDP 7X SERIES HIGH-STRENGTH ALLOY SUZUKI OUTBOARD "BIG DIAMETER" PROPELLER (E+ CLASS) - Pressed in Rubber Hub
NOTE: Suzuki does not produce OEM AL propellers. Matched with Suzuki OEM S.S propeller and KDP 7X Series
SKU #2512-160-150
REPLACES PROPELLER OEM P/N(S):
- SOLAS 4512-158-15
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #2512-160-150
Big Diameter Propeller: YES
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: E+ (4-3/4" Gearcase)
Horsepower Range: 150 - 300hp
Propeller Diameter: 16"
Pitch: 15"
Number of Blades: 3
Rotation: LH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 15
Outboard Engine: SUZUKI
SUZUKI COMPATIBLE ENGINE MODELS (4-3/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| DF150 (4 Stroke) | ALL YEARS |
| DF175 (4 Stroke) | ALL YEARS |
| DF200 (4 Stroke) | ALL YEARS |
| DF225 (4 Stroke) | ALL YEARS |
| DF250 (4 Stroke) | ALL YEARS |
| DF300 (4 Stroke) | ALL YEARS |
| DT150 (2 Stroke) | 1986 to 2003 |
| DT175 (2 Stroke) | 1986 to 1992 |
| DT200 (2 Stroke) | 1986 to 2000 |
| DT225 (2 Stroke) | 1986 to 2003 |
