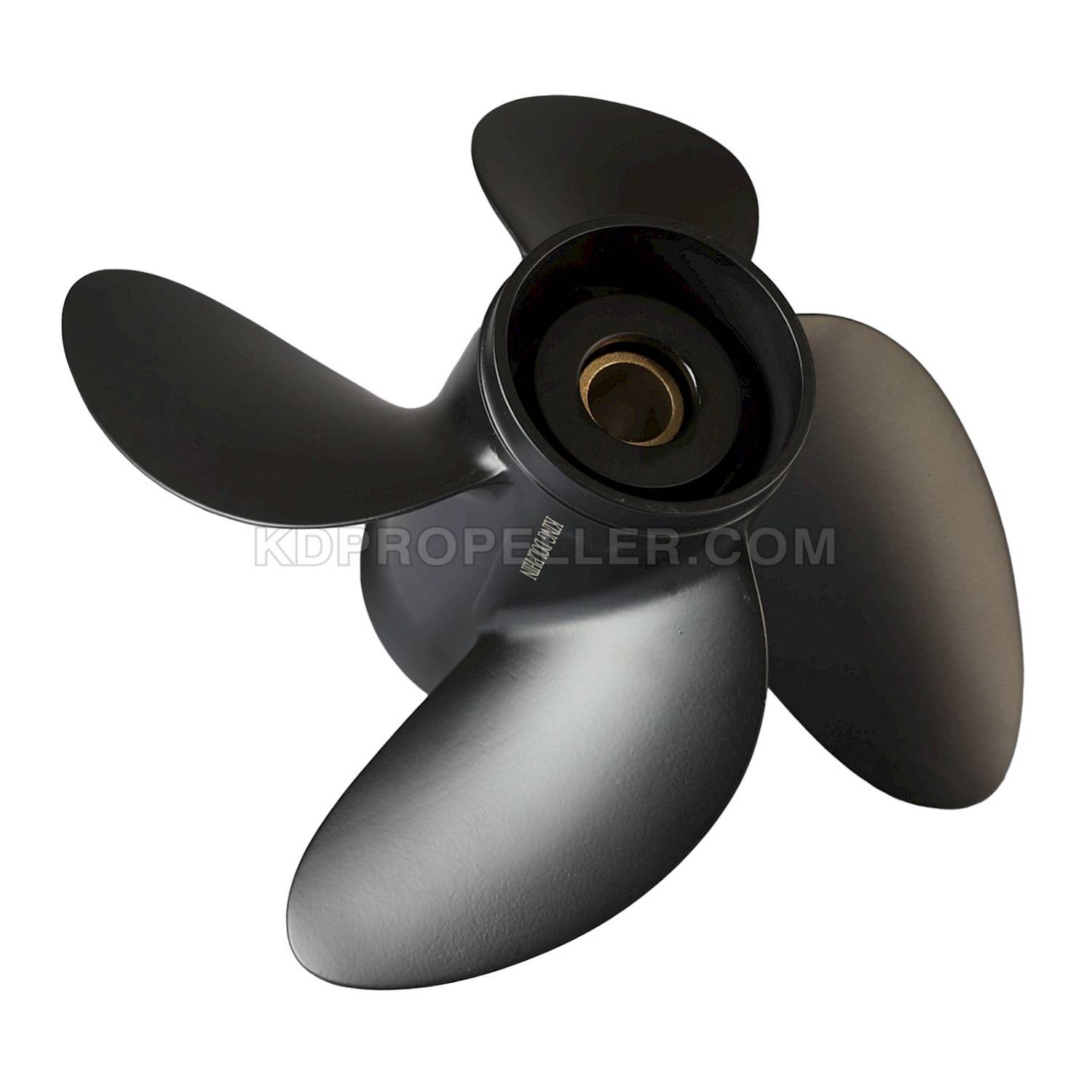

KDP 7X High-Strength Alloy 4-Blade Suzuki Outboard Propeller RH - D+ Class (SOLAS 3413-138-19)
Part #: 2413-138-190
Hub Type: Pressed-in
KDP Model: 7x Series
Class: D+
# of Blades: 4
Rotation: Right
Dimensions: D+ 13-3/4 x 19
Horsepower: 30 - 60 hp, 60 - 130 hp, 130 - 300 hp
Engines: Suzuki
KDP 7X SERIES HIGH-STRENGTH ALLOY SUZUKI OUTBOARD PROPELLER (D+ CLASS) - Pressed in Rubber Hub
SKU #2413-138-190
REPLACES PROPELLER OEM P/N(S):
- SOLAS 3413-138-19
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #2413-138-190
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: D+ (4-1/4" Gearcase)
Horsepower Range: 50 - 140hp
Propeller Diameter: 13-3/4"
Pitch: 19"
Number of Blades: 4
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 15
Outboard Engine: SUZUKI
SUZUKI COMPATIBLE ENGINE MODELS (4-1/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| DF70A (4 Stroke) | 2009 to Newer |
| DF80A (4 Stroke) | 2009 to Newer |
| DF90 (4 Stroke) | 2001 to 2008 |
| DF90A (4 Stroke) | 2009 to Newer |
| DF100 (4 Stroke) | 2009 to Newer |
| DF115 (4 Stroke) | 2001 to 2012 |
| DF115A (4 Stroke) | 2013 to Newer |
| DF140 (4 Stroke) | 2002 to 2012 |
| DF140A (4 Stroke) | 2013 to Newer |
