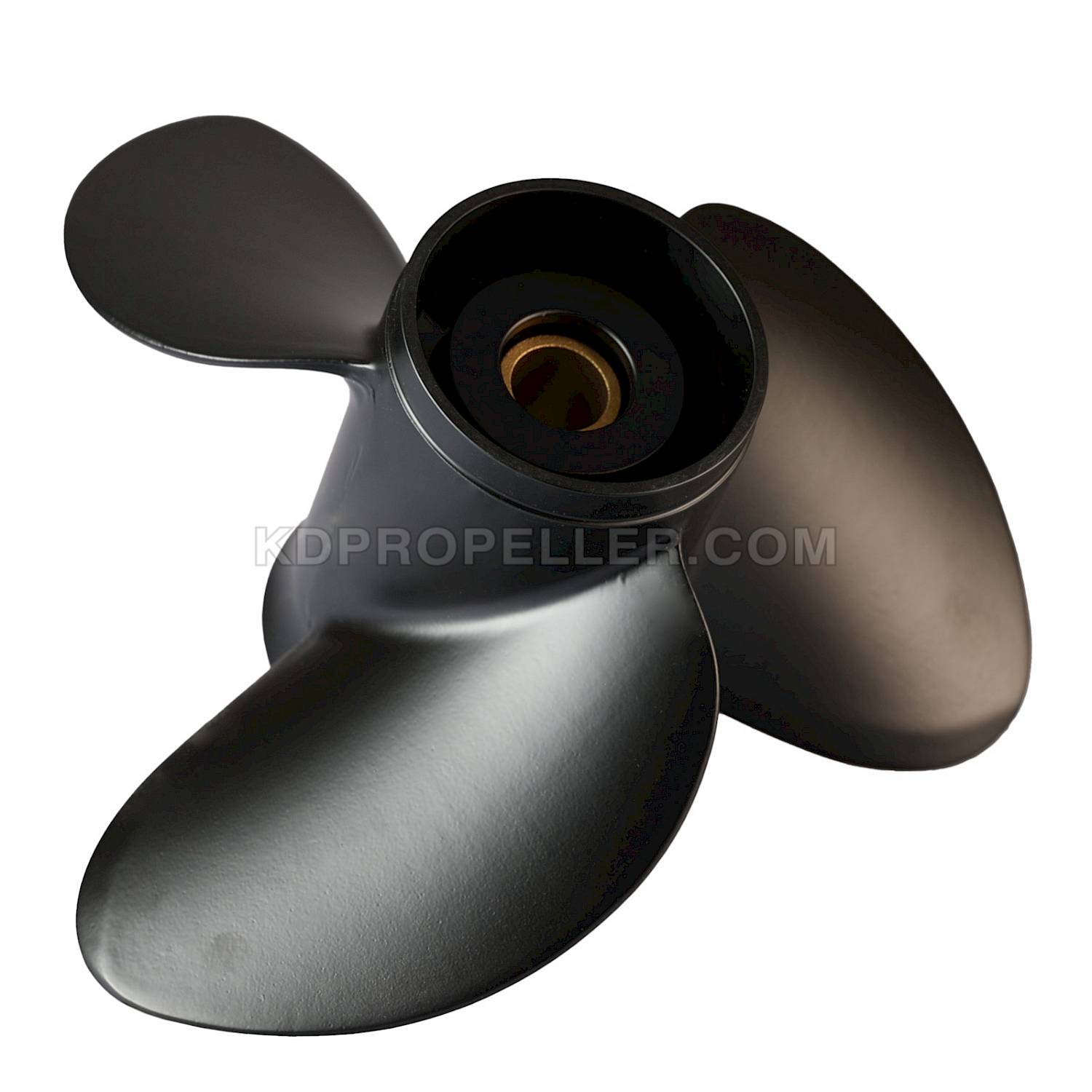

KDP 7X High-Strength Alloy 3-Blade Tohatsu Outboard Propeller RH - D Class (Tohatsu 3C7-34536-0, SOLAS 3411-135-15)
Part #: 1411-135-150
Hub Type: Pressed-in
KDP Model: 7x Series
Class: D
# of Blades: 3
Rotation: Right
Dimensions: D 13-1/2 x 15
Horsepower: 60 - 130 hp, 130 - 300 hp
Engines: Tohatsu
KDP 7X SERIES HIGH-STRENGTH ALLOY TOHATSU OUTBOARD PROPELLER (D CLASS) - Pressed in Rubber Hub
Note: KDP Tohatsu Class D is same as KDP Yamaha Class D
SKU #1411-135-150
REPLACES PROPELLER OEM P/N(S):
- TOHATSU 3C7-34536-0
- SOLAS 3411-135-15
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #1411-135-150
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: D (4-1/4" Gearcase)
Horsepower Range: 60 - 140hp
Propeller Diameter: 13-1/2"
Pitch: 15"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 15
Outboard Engine(s): TOHATSU, YAMAHA
TOHATSU COMPATIBLE ENGINE MODELS (4-1/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| 60C HP (Large Gearcase) | Up to 1999 |
| 70C HP (Large Gearcase) | Up to 1999 |
| 70HP TLDI | 2002 to 2009 |
| 75HP TLDI | 2010 to Newer |
| 90HP | 1987 to 2001 |
| 115HP | 1992 to 2001 |
| 115HP TLDI | 2004 to Newer |
| 120HP | 1988 to 2003 |
| 140HP | 1988 to 2003 |
YAMAHA COMPATIBLE ENGINE MODELS (4-1/4" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| F70hp (4 Stroke) | 2010 to Newer |
| F75hp (4 Stroke) | 2003 to Newer |
| F80hp (4 Stroke) | 1999 to Newer |
| F90hp (4 Stroke) | 1999 to Newer |
| F100hp (4 Stroke) | 1999 to 2002 |
| F115 (4 Stroke) | 2000 to Newer |
| F130hp (4 Stroke) | 2000 to Newer |
| F40G (4 Stroke) | 1992 to 2005 |
| FT50 (4 Stroke) | 1992 to 2005 |
| FT60 (4 Stroke) | 1992 to 2005 |
| 60hp (2 Stroke) | 1992 to 2005 |
| 75hp (2 Stroke) | 1994 to 1999 |
| 85hp (2 Stroke) | 1991 to 1997 |
| 115hp (2 Stroke) | 1984 to Newer |
