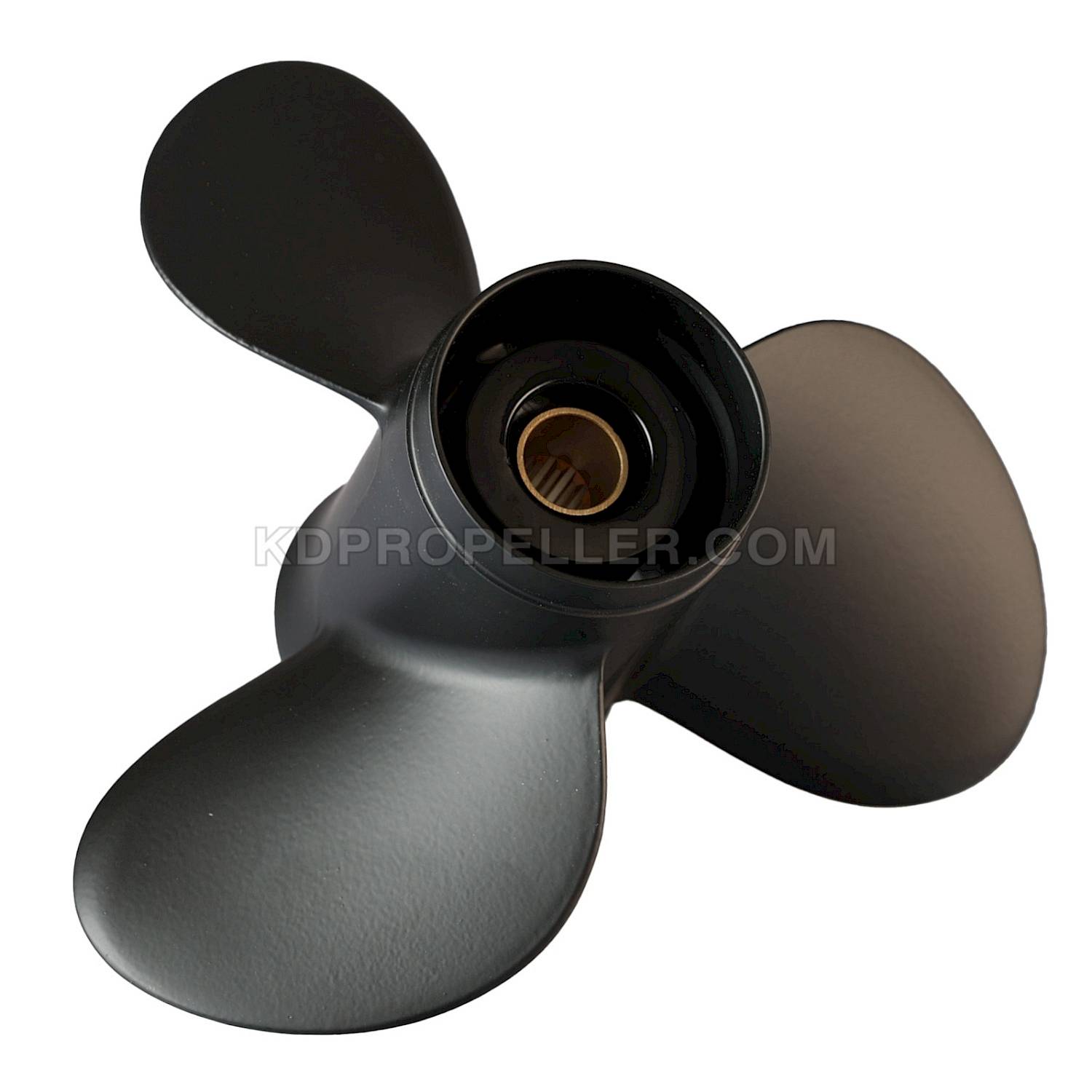

KDP 7X High-Strength Alloy 3-Blade Yamaha Outboard BIG DIAMETER Propeller RH - C Class (SOLAS 3311-116-13)
Part #: 1311-116-130
Hub Type: Pressed-in
KDP Model: 7x Series
Class: C
# of Blades: 3
Rotation: Right
Dimensions: C 11-5/8 x 13
Horsepower: 30 - 60 hp
Engines: Yamaha
KDP 7X SERIES HIGH-STRENGTH ALLOY YAMAHA OUTBOARD "BIG DIAMETER" PROPELLER - RH (C CLASS) - Pressed in Hub
NOTE: Big-Dia Propeller's are recommended for high gear ratios
SKU #1311-116-130
REPLACES PROPELLER OEM P/N(S):
- SOLAS 3311-116-13
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #1311-116-130
Big Diameter Propeller: Recommended for High Gear Ratios
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: C (3-1/2" Gearcase)
Horsepower Range: 30 - 60hp
Propeller Diameter: 11-5/8"
Pitch: 13"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 13
Outboard Engine: YAMAHA
YAMAHA COMPATIBLE ENGINE MODELS (3 1/2" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| F30 (4 Stroke) | 2001 to 2005 / 2015 to Newer |
| F40 (4 Stroke) | 1999 to Newer |
| F50 (4 Stroke) | 1995 to Newer |
| F60 (4 Stroke) | 1999 to Newer |
| T25hp (2 Stroke) | 2010 to Newer |
| 40hp (2 Stroke, Includes C40) | 1984 to Newer |
| 48hp (2 Stroke) | 1995 to 2000 |
| 50hp (2 Stroke) | 1984 to Newer |
| 55hp (2 Stroke) | 1976 to 1995 |
| 60hp (2 Stroke) | 1976 to 1991 |
