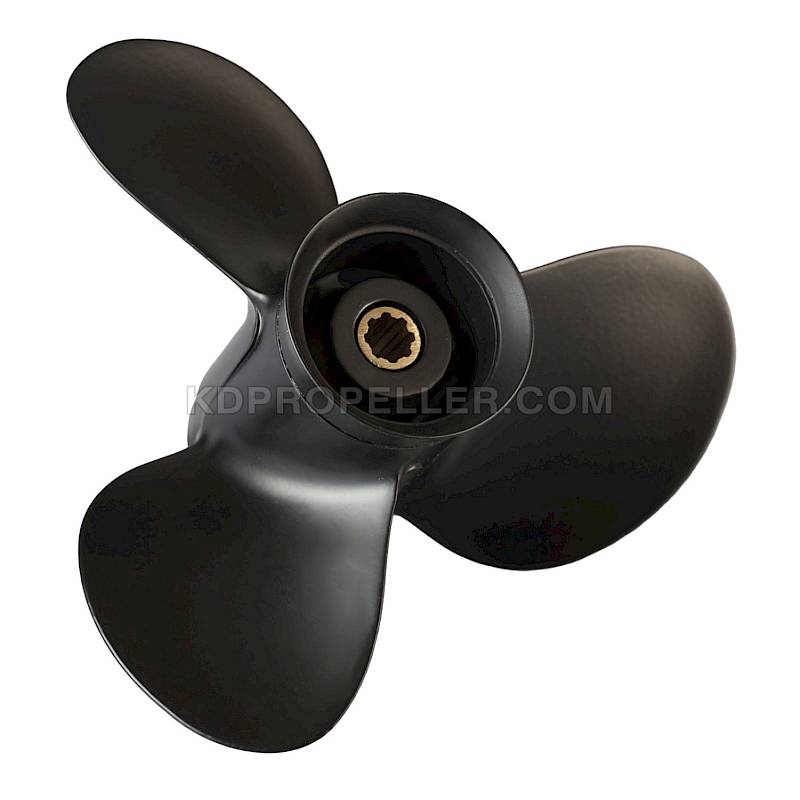

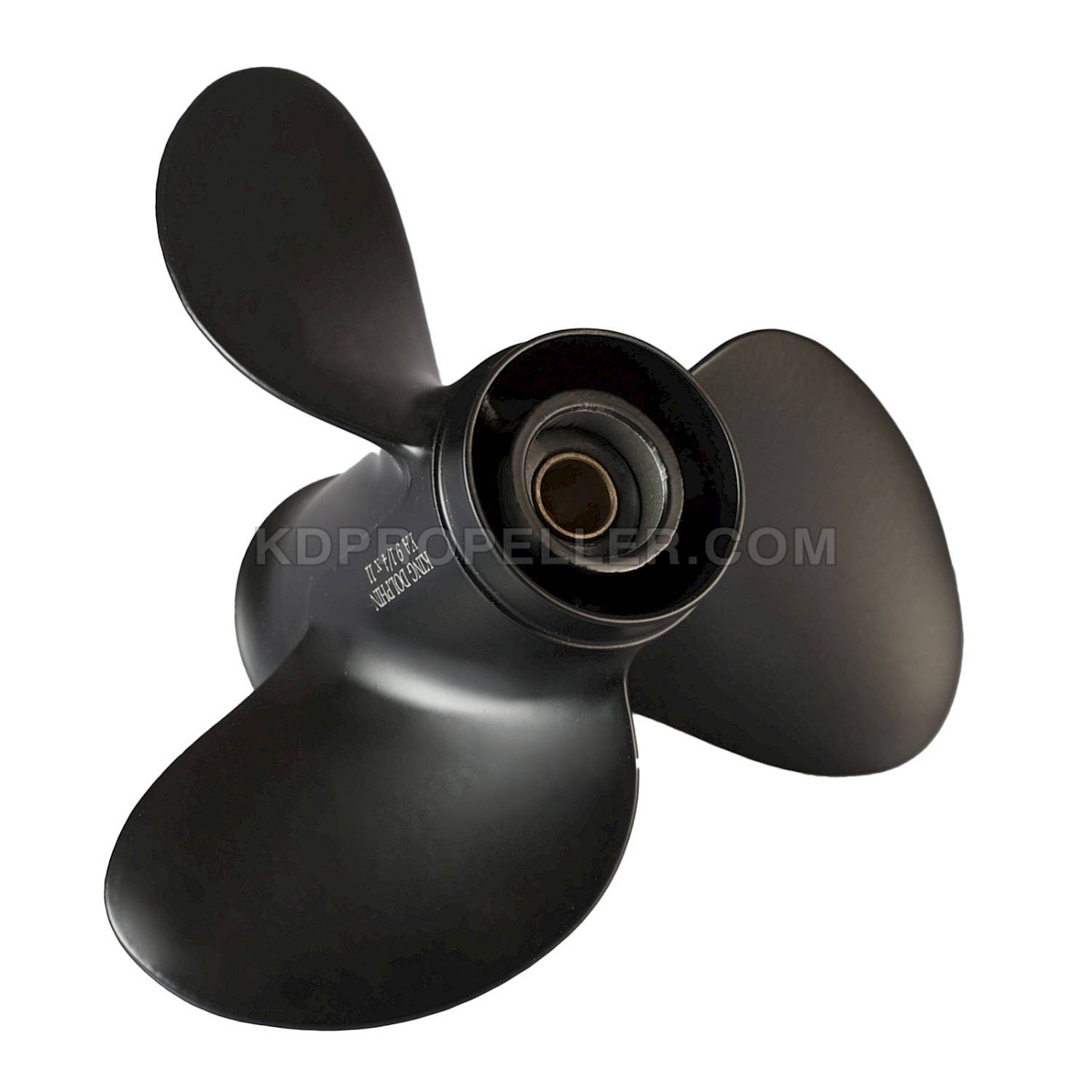

KDP 7X High-Strength Alloy 3-Blade Honda Outboard Propeller RH - A Class (Honda 58130-ZV4-009AH, SOLAS 3111-093-09)
Part #: 1111-093-090
Hub Type: Pressed-in
KDP Model: 7x Series
Class: A
# of Blades: 3
Rotation: Right
Dimensions: A 9-1/4 x 9
Horsepower: 0 - 20 hp
Engines: Honda
KDP 7X SERIES HIGH-STRENGTH ALLOY HONDA OUTBOARD PROPELLER (A CLASS) - Pressed in Rubber Hub
NOTE: KDP Honda Class A is the same as KDP Yamaha Class A
SKU #1111-093-090
REPLACES PROPELLER OEM P/N(S):
- HONDA 58130-ZV4-009AH
- SOLAS 3111-093-09
KDP PROPELLER SPECIFICATION INFORMATION
KDP Propeller p/n: #1111-093-090
KDP Propeller Series: 7X High-Strength Alloy
Propeller Class: A (2-1/2" Gearcase)
Horsepower Range: 9.9 - 20hp
Propeller Diameter: 9-1/4"
Pitch: 9"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Pressed In Rubber Hub
Number of Splines: 8
Outboard Engine(s): HONDA, YAMAHA
HONDA COMPATIBLE ENGINE MODELS (2-1/2" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| BF8HP (4 Stroke) | 2000 to Newer |
| BF9.9HP (4 Stroke) | 1988 to Newer |
| BF15HP (4 Stroke) | 1991 to Newer |
| BF20HP (4 Stroke) | 2003 to Newer |
YAMAHA COMPATIBLE ENGINE MODELS (2-1/2" Gearcase):
| ENGINE TYPE | YEAR |
|---|---|
| F9.9 (4 Stroke) | 2000 to 2007 |
| F15 (4 Stroke) | 1998 to Newer |
| F20 (4 Stroke) | 2007 to Newer |
| 9.9hp (2 Stroke) | 1984 to 2009 |
| 15hp (2 Stroke) | 1984 to 2009 |
