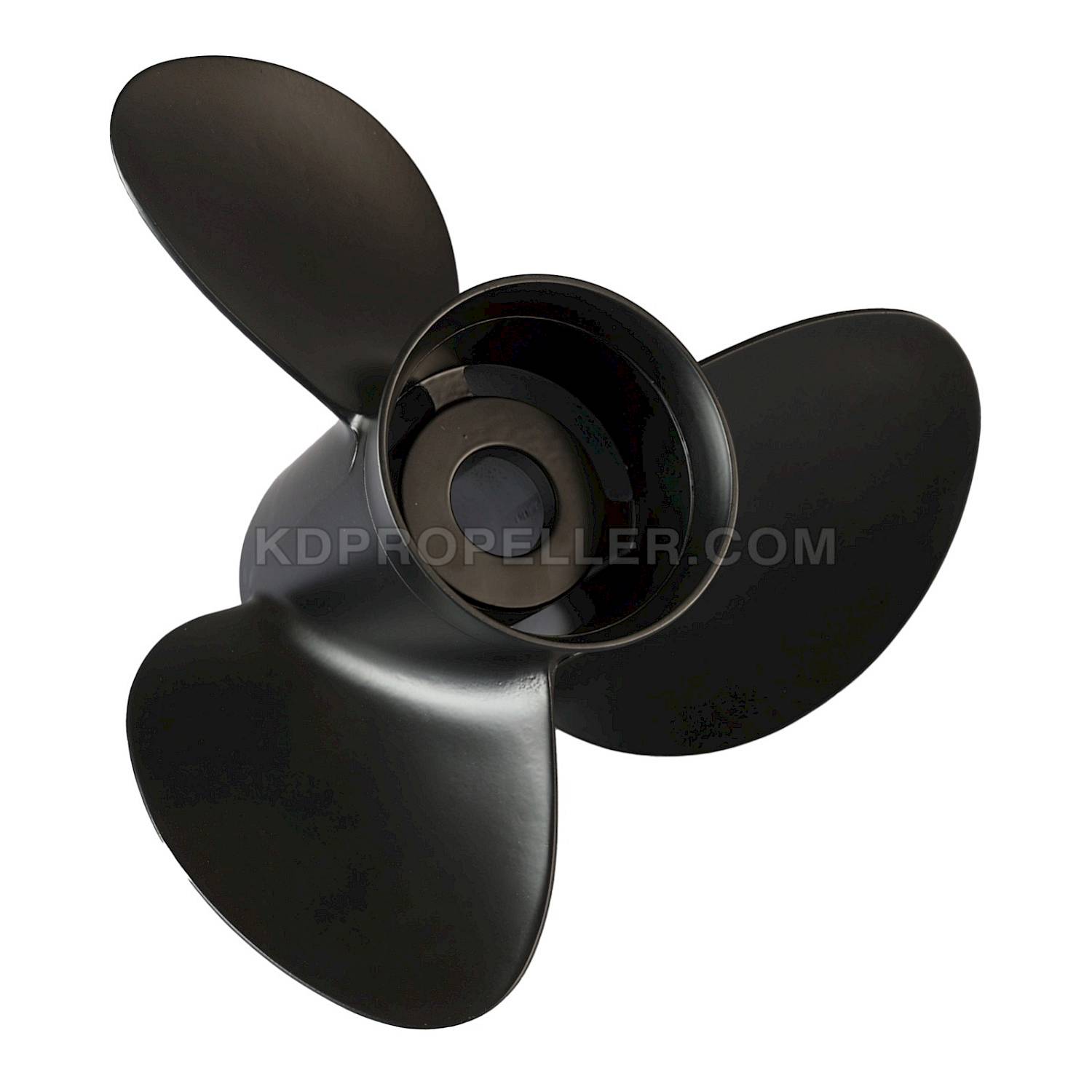

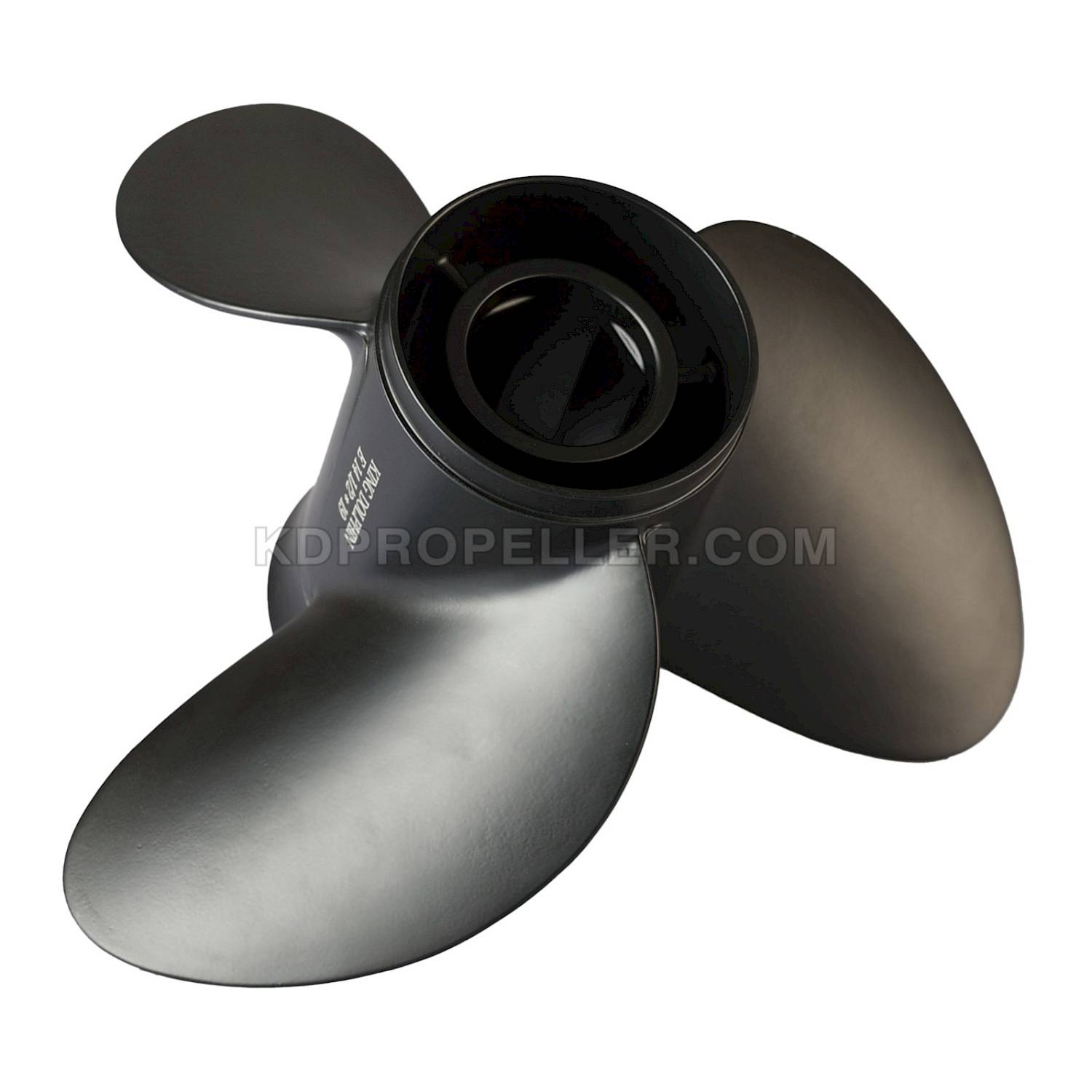

KDP Ultra 7X High-Strength Alloy Interchangeable 3-Blade Outboard Propeller RH - E Class (SOLAS 9511-143-21)
Part #: 0515-143-210
Hub Type: Interchangeable
KDP Model: Ultra 7x Series
Class: E
# of Blades: 3
Rotation: Right
Dimensions: E 14-1/4" x 21"
Horsepower: 60 - 130 hp, 130 - 300 hp, 300+ hp
Engines: Yamaha, Mercury, Suzuki, Honda, Evinrude (BRP), Oxe Diesel
KDP ULTRA 7X SERIES HIGH-STRENGTH ALLOY "INTERCHANGEABLE" OUTBOARD PROPELLER (E CLASS) - RH ROTATION
NOTE: Interchangeable Hub Propeller
SKU #0515-143-210
REPLACES PROPELLER OEM P/N(S):
- SOLAS 9511-143-21
KDP PROPELLER SPEC INFO
KDP Propeller p/n: #0515-143-210
KDP Propeller Series: Ultra 7X High-Strength Alloy
Propeller Class: E (4-3/4" Gearcase)
Horsepower Range: 115hp & Up
Diameter: 14-1/4"
Pitch: 21"
Number of Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Hub Type: Interchangeable
Outboard Engines: YAMAHA, SUZUKI, HONDA, MERCURY, EVINRUDE (BRP, JOHNSON), OXE DIESEL
OUTBOARD ENGINE: YAMAHA
Horsepower Range: 150 to 350
Propeller Class: E
Use KDP Ultra E Class Rubber Hub Kit p/n(s)*: 1511-1, 1521-1, 1521-2
*Please review hub kit information below to confirm your application material
#1511-1 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 150 to 225hp | 1985 & Newer |
| 250hp | 1984 & Newer |
| 300hp | 2003 & Newer |
| 300hp HPDI | 2004 & Newer |
#1521-1 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 150 to 225hp | 1985 & Newer |
| 250hp | 1984 & Newer |
| 300hp | 2003 & Newer |
| 300hp HPDI | 2004 & Newer |
#1521-2 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 300hp 4-Stroke V8 | All Years |
| 350hp 4-Stroke V8 (17 Tooth Spline 5-1/4" Gearcase) | All Years |
OUTBOARD ENGINE: SUZUKI
Horsepower Range: 150 to 300
Propeller Class: E
Use KDP Ultra E Class Rubber Hub Kit p/n(s)*: 2511, 2521
*Please review hub kit information below to confirm your application
#2511 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| DT 150-225hp (2 Stroke) | 1986 & Newer |
| DF 150-300hp (4 Stroke) | All Years |
#2521 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| DT 150-225hp (2 Stroke) | 1986 & Newer |
| DF 150-300hp (4 Stroke) | All Years |
OUTBOARD ENGINE: HONDA
Horsepower Range: 115 to 250
Propeller Class: E
Use KDP Ultra E Class Rubber Hub Kit p/n(s)*: 3511, 3521
*Please review hub kit information below to confirm your application
#3511 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| BF 115hp | 2011 to Newer |
| BF 135 to 250hp | 2002 to Newer |
#3521 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| BF 115hp | 2011 to Newer |
| BF 135 to 250hp | 2002 to Newer |
OUTBOARD ENGINE: MERCURY
Horsepower Range: 90-400
Propeller Class: E
Use KDP Ultra E Class Rubber Hub Kit p/n(s)*: 5511, 5521, 5531
*Please review hub kit information below to confirm your application
#5511 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 90 to 115hp (Command Thrust) | 2014 to Newer |
| 135hp | 1987 to Newer |
| 150 to 300hp | 1978 to Newer |
#5521 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 90 to 115hp (Command Thrust) | 2014 to Newer |
| 135hp | 1987 to Newer |
| 150 to 300hp | 1978 to Newer |
#5531 (Rubber & Stainless Steel) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 200 to 400hp Mercury 4-Stroke with 1.25" Propeller Shafts | ALL YEARS |
OUTBOARD ENGINE: EVINRUDE (BRP, JOHNSON)
Horsepower Range: 90-300
Propeller Class: E
Use KDP Ultra E Class Rubber Hub Kit p/n(s)*: 6511-1 / 6521-1, 6511-2 / 6521-2, 6511-3 / 6521-3, 6511-4 / 6521-4
*Please review hub kit information below to confirm your application
#6511-1 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 90 to 300hp (2 Stroke) | 1991 to Newer |
#6521-1 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 90 to 300hp (2 Stroke) | 1991 to Newer |
#6511-2 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 200 to 225hp (4 Stroke) | 2004 to 2005 |
#6521-2 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 200 to 225hp (4 Stroke) | 2004 to 2005 |
#6511-3 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 150 to 300hp G2 | 2014 to Newer |
#6521-3 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 150 to 300hp G2 | 2014 to Newer |
#6511-4 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 90 to 300hp (2 Stroke) | 1978 to 1990 |
| 800 Cobra (15 Tooth Spline) | 1978 to 1990 |
| King Cobra (15 Tooth Spline) | 1978 to 1990 |
#6521-4 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model & Year:
| ENGINE TYPE | YEAR |
|---|---|
| 90 to 300hp (2 Stroke) | 1978 to 1990 |
| 800 Cobra (15 Tooth Spline) | 1978 to 1990 |
| King Cobra (15 Tooth Spline) | 1978 to 1990 |
OUTBOARD ENGINE: OXE DIESEL
Horsepower Range: 125-200
Propeller Class: E
Use KDP Ultra E Class Rubber Hub Kit p/n(s)*: 7511, 7521
*Please review hub kit information below to confirm your application
#7511 (Aluminum Alloy) KDP Ultra Hub Kit - Compatible Engine Model(s):
| ENGINE TYPE | YEAR |
|---|---|
| 125hp (15 Tooth Spline) | ALL YEARS |
| 150hp (15 Tooth Spline) | ALL YEARS |
| 175hp (15 Tooth Spline) | ALL YEARS |
| 200hp (15 Tooth Spline) | ALL YEARS |
#7521 (Bronze) KDP Ultra Hub Kit - Compatible Engine Model(s):
| ENGINE TYPE | YEAR |
|---|---|
| 125hp (15 Tooth Spline) | ALL YEARS |
| 150hp (15 Tooth Spline) | ALL YEARS |
| 175hp (15 Tooth Spline) | ALL YEARS |
| 200hp (15 Tooth Spline) | ALL YEARS |
