KDP Suzuki D-Class Ultra 7X Interchangeable Marine Propeller Rubber Hub Kit (Bronze) - Solas RBX-125B, Michigan XHS II 225

KDP SUZUKI D-CLASS ULTRA 7X SERIES INTERCHANGEABLE MARINE PROPELLER RUBBER HUB KIT (Bronze)
NOTE: Hub Kit for Interchangeable Marine Propeller (SUZUKI)
SKU #2421-2

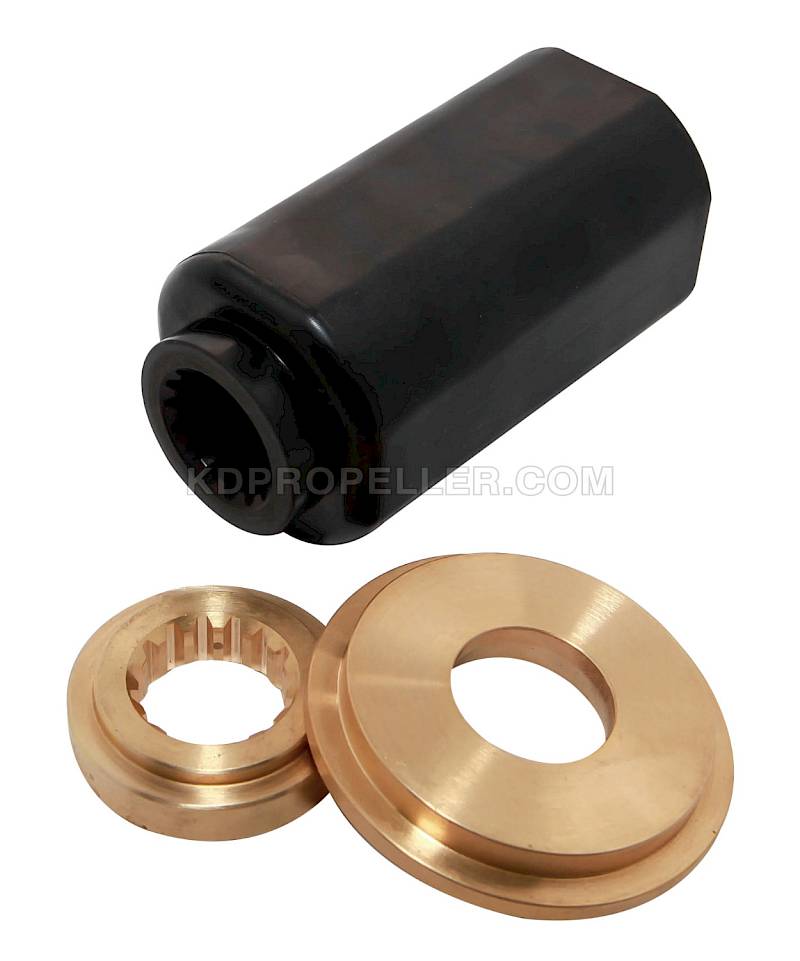

HUB KIT INCLUDES:

• Thrust Washer
• Rubber Hub
• After Spacer

REPLACES / EQUIVALENT TO RUBBER HUB KIT P/N(s):

• SOLAS RBX Hub Kit p/n: RBX-125B
• Michigan Hub Kit p/n: XHS II 225

KDP ULTRA RUBBER HUB FEATURES:

• Holds up to wide range of Dynamic and Static Loads
• Special formulated rubber compound enabling high power long-term use and cyclic loads
• Excellent vibration and shock-absorbing properties
• High corrosion resistence
• One body construction = conistent daily power loads
• Insert edge design distributes high loads, avoids bending while shifting gears or in the event of propeller striking object
• Resuable if propeller is damaged

KDP INTERCHANGEABLE HUB SPEC INFO
KDP Ultra Rubber Hub Kit p/n: #2421-2
Used for KDP Propeller Series: Ultra 7X High-Strength Alloy (H.S.A)
Propeller Class: D, D+
Horsepower Range: 40 - 140hp
Hub Type: Interchangeable Rubber Hub
Number of Splines: 15 tooth spline
Insert Material Type: Bronze
Made In: South Korea
Outboard Engine(s): SUZUKI

COMPATIBLE SUZUKI ENGINE MODEL & YEAR:

ENGINE TYPE	YEAR
DF 90 (15 Tooth Spline)	2001 to 2004
DF 100 (15 Tooth Spline)	2009 to Newer
DF 115 4-Stroke (15 Tooth Spline)	2001 to 2012

3 BLADE RH ROTATION D CLASS
List of Compatible KDP Ultra 7X Series High-Strength Alloy Interchangeable Outboard Propellers
NOTE: for more information on each item below please go to product page part number

#0415-138-130 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-3/4"
Pitch: 13"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-138-13

#0415-135-150 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-1/2"
Pitch: 15"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-135-15

#0415-133-170 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-1/4"
Pitch: 17"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-133-17

#0415-130-190 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13"
Pitch: 19"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-132-19

#0415-130-210 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13"
Pitch: 21"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-132-21

#0415-139-150 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-7/8"
Pitch: 15"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: N/A

#0415-139-170 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-7/8"
Pitch: 17"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-139-17

#0415-139-190 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-7/8"
Pitch: 19"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-139-19

#0415-139-210 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 3 BLADE
Class: D
Diameter: 13-7/8"
Pitch: 21"
Gearcase: 4-1/4"
Blades: 3
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: 9411-139-21

---

4 BLADE RH ROTATION D+ CLASS
List of Compatible KDP Ultra 7X Series High-Strength Alloy Interchangeable Outboard Propellers
NOTE: for more information on each item below please go to product page part number

#0417-138-150 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 4 BLADE
Class: D+
Diameter: 13-3/4"
Pitch: 15"
Gearcase: 4-1/4"
Blades: 4
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: N/A

#0417-138-170 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 4 BLADE
Class: D+
Diameter: 13-3/4"
Pitch: 17"
Gearcase: 4-1/4"
Blades: 4
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: N/A

#0417-138-190 KDP Ultra 7X H.S.A Interchangeable Outboard Propeller - 4 BLADE
Class: D+
Diameter: 13-3/4"
Pitch: 19"
Gearcase: 4-1/4"
Blades: 4
Rotation: RH
Material Type: High-Strength Alloy (H.S.A)*
Propeller H.S.A Characteristics*: Light as Aluminum, Durable as Titanium, Reliable as Stainless Steel
Made In: South Korea
Replaces Solas Propeller p/n: N/A
